USB adapter for the connection of CAN networks
Support of all high-layer protocols through transparent tunneling of messages
![[DeepL] sysWORXX USB-CANmodul1](/media/default/user_upload/3204000-USB-CANmodul-1.jpg)
The USB-CANmodul1 is a reliable and robust interface solution for connecting CAN networks to Windows and Linux devices such as PCs, laptops and embedded controllers. Thanks to the transparent tunneling of CAN messages, the module can be used with CAN-based high-layer protocols such as CANopen, SDS, DeviceNet or J1939.
A high-performance 32-bit CPU core with integrated message buffer enables reliable communication even under high bus loads and provides precise time stamps for the CAN messages received.
The PC driver allows simple Plug&Play installation and supports simultaneous operation of up to 64 CAN channels on one host. The driver enables the simultaneous use of the USB CAN module by various applications via virtual networks.
Thanks to its attractive price-performance ratio and its reliable compact design, the USB-CANmodul is ideally suited for CAN bus-based developments, service and maintenance tasks in CAN bus systems, as well as for use in series products. The included CAN monitoring software rounds off the package.
The USB-CANmodul complies with the EMC Directive 2014/30/EU.
USB-CANmodule: Now also optionally available with USB-C connection!

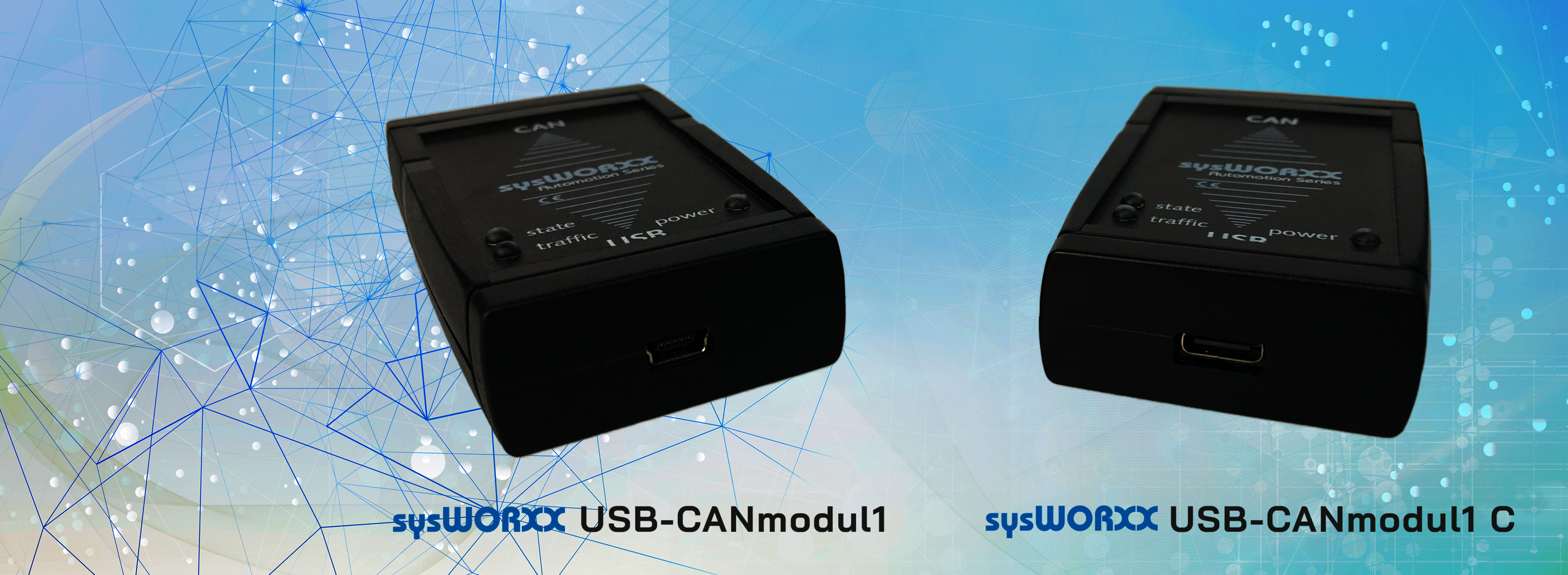

Our USB-CANmodul1 is now also available with an optional USB-C connection - the USB-CANmodul1 C.
This extension offers you even more flexibility and future-proofing when integrating your CAN bus systems and broad compatibility with modern devices.
Our USB CANmodul is of course still available in the classic version with USB-B Mini 5 connection. Both versions offer the usual reliability and functionality that you expect from our products.
The USB-CANmodul1 and the USB-CANmodul1 C are also available as open frame versions. Direct integration into application-specific hardware as a design-in is possible on request.
-
Module features...
![]()
Modul- Eigenschaften Physical
USB-CANmodul1 (art. no. 3204001-01)
USB-CANmodul1 C (art. no. 3204030-01)
. Size (LxWxH)
78 x 45 x 18mm
78 x 45 x 18mm
Weight
approx. 40g
approx. 40g
Operating temperature
-40 to +85ºC
-40 to +85ºC
Humidity
10 to 95% non-condensing (VDE 0110)
10 to 95% non-condensing (VDE 0110)
n Connectivity
Number of CAN channels
1
1
USB connection
USB-B-Mini 5
USB-C for USB2.0
Host connection
USB V2.0 Full Speed
USB V2.0 Full Speed
CAN interface
1 CAN interface, high-speed CAN in accordance with ISO 11898-2, optically isolated
1 CAN interface, high-speed CAN in accordance with ISO 11898-2, optically isolated
CAN transceiver
High SpeedCAN: 82C251
HighSpeed CAN-FD: MCP2562
CAN specification
ISO 11898-1/2, standard frames, extended frames
ISO 11898-1/2, standard frames, extended frames
CAN connection
SUB-D9
SUB-D9
CAN bit rate
10kbps to 1Mbps
10kbps to 1Mbps
CAN Bus Features
Transmit Remote Frames
Transmit Remote Frames
. List only mode, time stamp for received messages (100µs resolution)
Automatic transmission of cyclic messages, hardware acceptance filter, feedback on status change and connect/disconnect
n Software
Software-supported operating systems
Windows®11, 10, 8.1, 8, 7 (32/64 bit), Linux
Windows®11, 10 (32/64 bit), Linux
Software support for Windows®
USB-CANmodul Control - configuration tool for multiple USB-CANmodules
USB-CANmodul Control - configuration tool for multiple USB-CANmodules

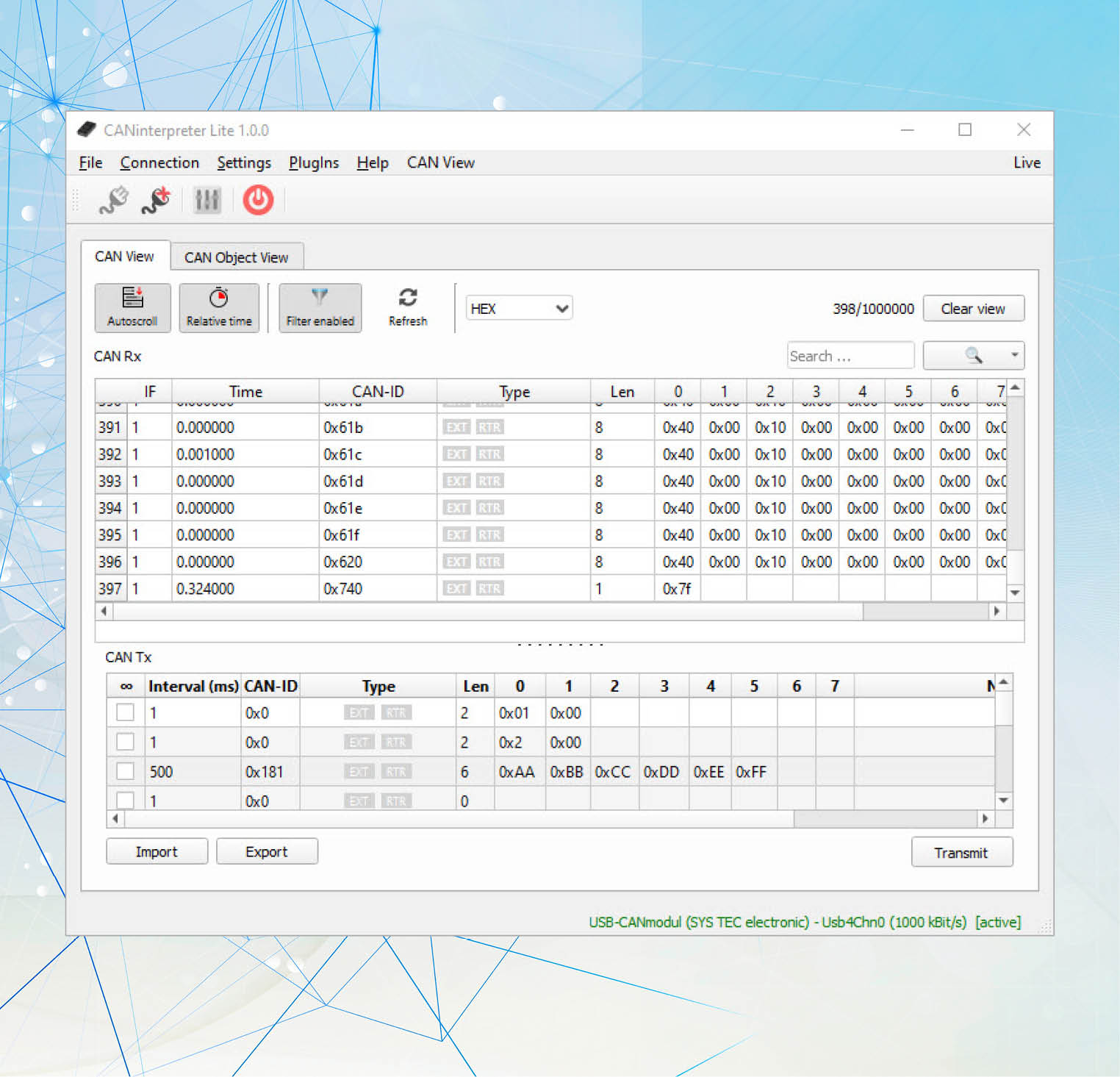

CANinterpreter Lite - easy-to-use CAN monitor that enables CAN messages to be sent and received
CANinterpreter Lite - easy-to-use CAN monitor that enables CAN messages to be sent and received
Programming support for Windows®
Extensive programming API including demo source for Microsoft Visual C++, LabView, Visual Basic .NET
Extensive programming API including demo source for Microsoft Visual C++, LabView, Visual Basic .NET
Programming support for Linux
SocketCAN based API device drivers
SocketCAN based API device drivers
n Displays
LED
LEDs for power supply, CAN status, CAN data traffic
LEDs for power supply, CAN status, CAN data traffic
Power supply
USB Powered
USB Powered
Current consumption
typ. 150mA
typ. 150mA
n Enclosure
Housing
Desktop housing
Desktop housing
-
Documents & Downloads...
Downloads Name Type Size Action C CANinterpreter Lite for Linux Version V1.0.0 - Use only with SYS TEC sysWORXX USB-CANmodul Series zip 43 MB Download CANinterpreter Lite for Windows Version V1.0.1 - Use only with SYS TEC sysWORXX USB-CANmodul Series zip 20 MB Download L Linux SocketCAN driver for sysWORXX USB-CANmodul Series P/N SO-1139 - Version V1.0.7 bz2 327 KB Download [ [DeepL] Manual for USB-CANmodul Series (EN) pdf 5 MB Download U USB-CANmodul Utility Disk P/N SO-387 - V6.09r6 - Driver for Windows® 11, 10, 8.1, 8, (32/64 bit) and LabView, Please note - this package includes driver support for all standard module versions of 3rd (AT91) and 4th (STM32) generation. zip 72 MB Download USB-CANmodul Utility Disk P/N SO-387 - V4.18r2 - Driver for Windows® XP (32bit), Please note - this package includes only support for all older standard modules GW-001 and GW-002. zip 8 MB Download USB-CANmodul Utility Disk P/N SO-387 - V6.05 - Driver for Windows® 7(32/64 bit) and LabView, Please note - this package includes driver support for all standard module versions of 3rd (AT91) and 4th (STM32) generation. zip 11 MB Download -
Ordering information...
Bestellinfos Item no.
Description
3204001-01
USB-CANmodul1
Desktop housing, high-speed CAN transceiver 82C251, optically isolated, USB-B mini connection
3304015-01
USB-CANmodul1
Identical technical features to 3204001-01, only without housing
3204030-01
USB-CANmodul1 C
Desktop housing, high-speed CAN-FD: MCP2562, optically isolated, USB-C connection
3304030-01
USB-CANmodul1 C
Technically identical to 3204030-01, only without housing
Your contact:
Your SYS TEC electronic sales team
