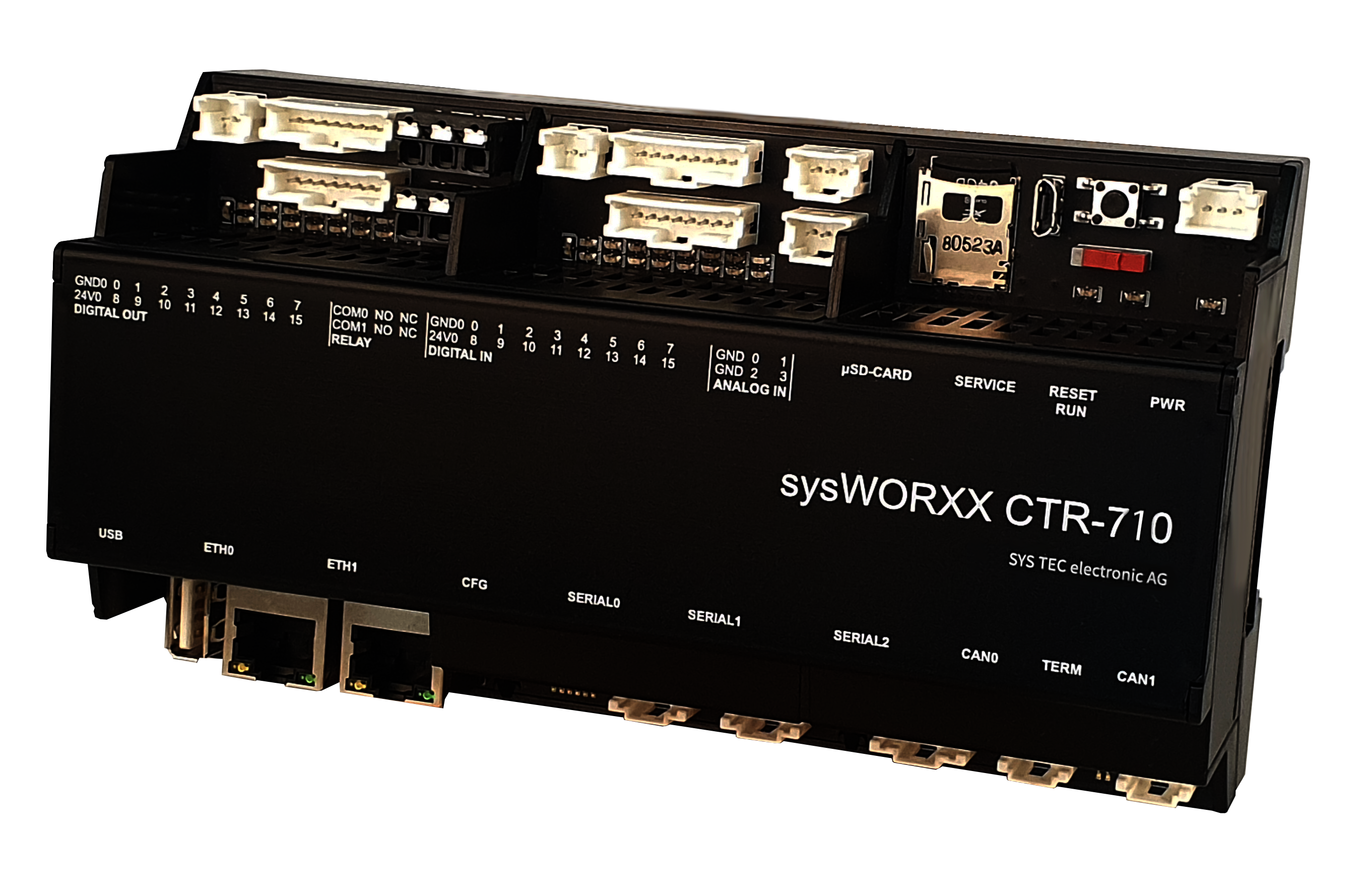

sysWORXX CTR-710

Controller for efficient pre-confectioning

quick installation and replacement in the field without errors in the wiring

[DeepL] sysWORXX CTR-710

Enable your technicians and operators to easily exchange field devices with our sysWORXX CTR-710. The new variant of our Linux-based compact controller features Molex Micro Clasp connectors for quick-release connection of all local inputs and outputs as well as communication interfaces via mating connectors. This module is especially suitable for frequently changing applications in the field as well as commissioning by untrained personnel. It allows you to completely replace your application in the shortest possible time without remote access or on-site program changes.

Your advantages

  • Individual assembly and design options, white and brand labels
  • pre-assembly of the interfaces by means of Molex Micro Clasp, 2mm pitch
  • freely programmable open source component for automation or digitization
  • powerful and immediately usable with all standard partner solutions
  • Applications & Solutions

    Application scenarios

    • freely programmable open source component for automation or digitalization
    • field gateway, edge controller, compact PLC
    • Mesh controller and sink (wirepas massive)
    • climate data acquisition, asset tracking, energy monitoring and device management

    learn more

    Our partner solutions:

    • Teamviewer IoT Agent
    • qBee Device Management
    • wirepas massive pure mesh connectivity
  • Software & Programming

    Programmability? No question!

    Our CTR-710 also speaks the languages of your employees. As a controller, it is freely programmable and configurable for all requirements and supports modern high-level languages as well as the execution of IEC 61131-3 PLC programs and Linux-based applications. As a basic component for your development, there are hardly any limits to your ideas.

    • C/C++, C#, Java, Python
    • Node-RED Runtime with sysWORXX specific nodes
    • OpenPCS integration IEC 61131-3
  • Personalization

    Our modules and controllers are flexibly adaptable to your needs:

    • White- & Brandlabel
    • individual assembly and design options

    Whether you need to serve a different form factor, temperature range or special environmental conditions - we have the basic technology

    for your solution!

  • Features / Details

    • Molex Micro Clasp Connectors, 2mm Pitch
    • independent Ethernet interfaces for secure separation of enterprise IT and store floor OT
    • Use of various protocols:
      • CAN, CANopen (incl. CANopen manager service for integration of other CANopen modules)
      • Modbus RTU and TCP
      • OPC UA
      • MQTT
    • Shielded backplane extension bus
    • suitable for DIN-rail mounting
    • WLAN connection via external antenna

    Physical



    Size (height, width, depth)

    60x162x91mm

    Temperature

    0°...55°C

    Humidity

    10 - 95% non-condensing (VDE 0110)

    CPU





    Processor

    NXP i.MX 7

    Processor core

    Dual Cortex-A7

    MPU speed (MHz)

    1000

    MIPS

    3800

    RTC

    Yes

    Temp. sensor

    Yes

    Memory





    RAM

    1024 MB

    Storage

    8GB eMMC

    Connectivity



    ETH

    2 (Secure separation of IT & OT)

    CAN

    2 (CANopen, CAN Layer 2)

    SIO

    3 (RS485 Modbus, RS232 freely available)

    USB Host

    1

    SD Card

    1

    Linux console

    1 (Version as USB or RS232)



    Prepared for use with all major cloud providers through standard protocols such as MQTT, OPC-UA and REST

    Cloud

    prepared for use with all major cloud providers

    Software



    Basic installation

    Linux OS (Debian 10 Buster), I/O driver, Node-RED incl. sysWORXX Nodes for I/O access and data exchange with IEC 61131-3 Runtime OpenPCS, OpenJDK & Mono

    Additional licenses

    IEC 61131-3 Runtime OpenPCS, OPC UA server for OpenPCS

    Optional

    Third party software: Download via Debian OS repositories



    TeamViewer Agent for connection to TeamViewer Cloud



    qBee Agent for Device Management via Cloud

    I/O interfaces





    Digitel inputs 24 VDC

    16 (data galvanically decoupled)

    A/B Encoder

    1 (alternate function for 2 DI and Highspeed Counter)

    Highspeed Counter

    1 (alternate function for 2 DI and A/B Encoder)

    Digital outputs 24VDC, 0.5 A

    16

    PWM

    2 (alternate function for 1 DO - depending on used PWM channel)

    Relay 230VAC, 1 A

    2

    Analog inputs

    4 (configurable: 0...10VDC, 0...20mA)

    Displays



    Switch

    Run/Stop, Config, Reset, Boot

    Status LEDs

    Power CPU, Power periphery, Run, Error & more

    Maintenance access

    SSH/SFTP

    Power Consumption

    24V, 1.5A Supply - typical consumption 0.1A (without digital outputs)
