sysWORXX CTR-100

Smart IoT control with cloud connection

plug-on, freely programmable

Small and smart - our sysWORXX CTR-100 is a plug-on computing core for connection to the cloud, which is freely programmable by the user. Unlike other IoT chip devices, the CTR-100 from SYS TEC electronic combines Sensor2Cloud requirements with data preprocessing from time-critical signals to efficient control tasks. For this purpose, corresponding function libraries are already pre-installed, making the CTR-100 ready for immediate use. In addition, our CTR-100 is well prepared for the use of cloud services such as the IBM IoT platform (IBM Watson).

Your advantages

  • freely programmable and autonomously usable
  • Sensor2Cloud requirements with data pre-processing from time-critical signals to efficient control tasks
  • direct connection of accuators and sensors
  • cloud compatible - direct connection
  • worth its price
  • Features

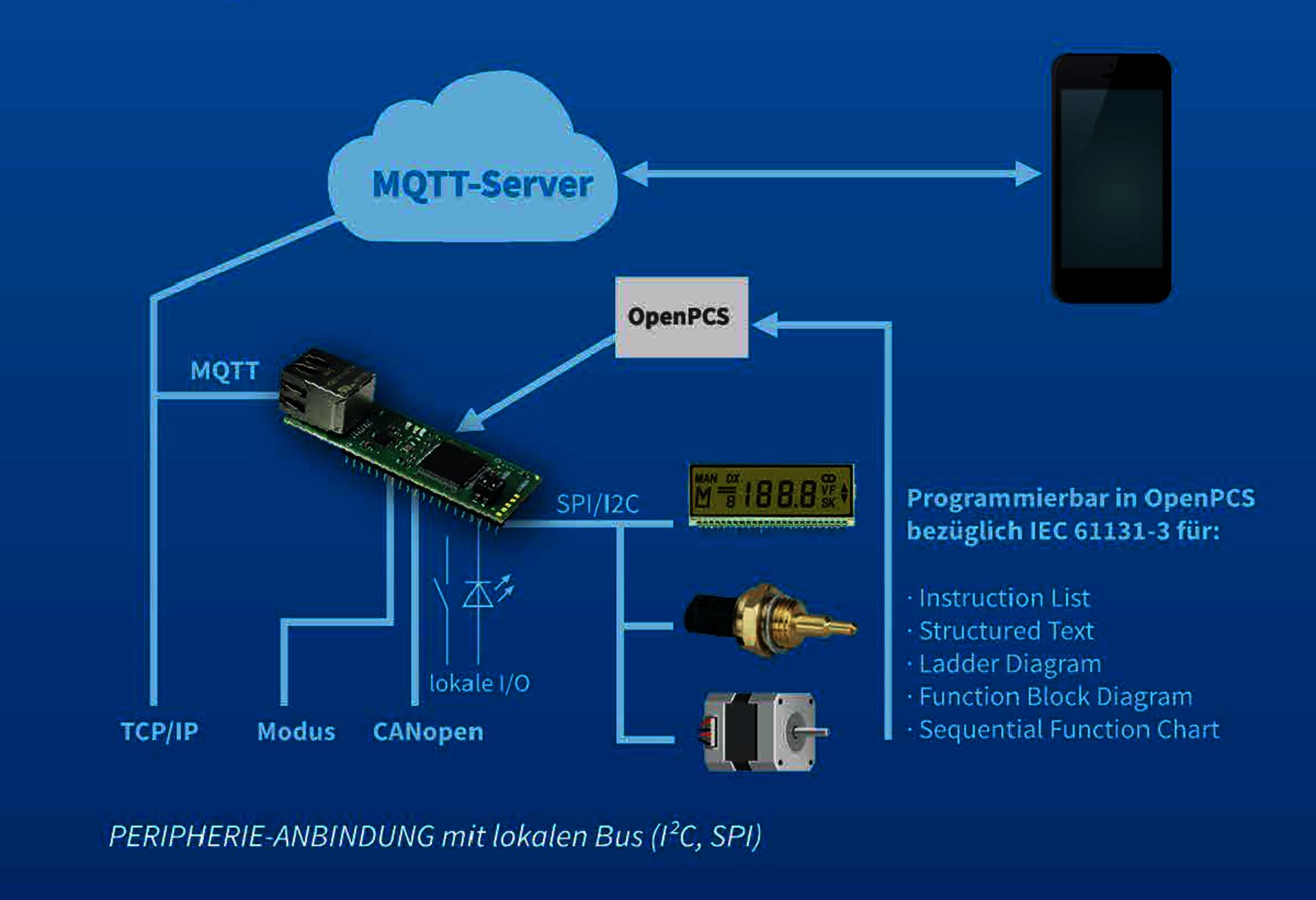

    • [DeepL] sysWORXX CTR-100 overview

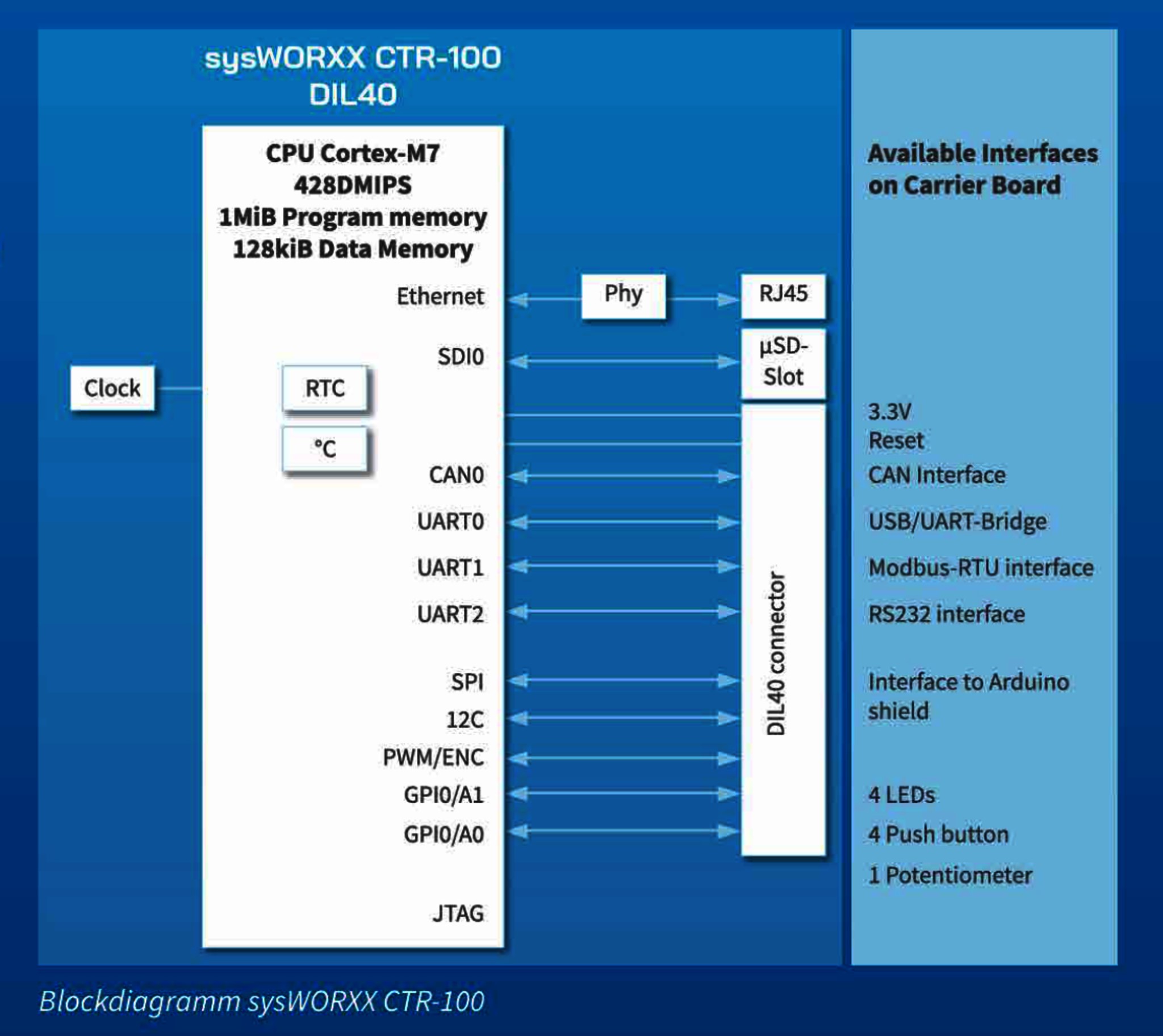

    • [DeepL] sysWORXX CTR-100 Block Diagram

    Like any of our devices, the sysWORXX CTR-100 is suitable for direct connection to the cloud and easy to integrate for IoT/Industry 4.0 application. The advantages are in the area of application, security and cloud connection. Protocols such as MQTT, Modbus or CANopen are available on the chip as libraries, ready for immediate use. The templates and examples provided in the source code serve the user as a starting point for his own application developments. Acuators and sensors can be connected directly via DI/DO, I²C and SPI. Thus, the entire measurement, control and regulation can be mapped directly on the CTR-100. The chip operates autonomously and independently of the cloud. With other IoT chip devices, said processes typically take place in the cloud. Moreover, no additional gateway is required for the connection to the cloud.

  • Basic technology

    [DeepL] sysWORXX CTR-100 Baseboard + Arduino

    Open, free and individually programmable and usable, that is our sysWORXX CTR-100 as a basic component for your development. So there are hardly any limits to your ideas.

    In addition to free application development, the baseboard of the CTR-100 can of course also be adapted to individual requirements and embedded directly in the target hardware . Thereby it is possible to combine the design of the CTR-100 directly on PCB level (in DIL40 or LGA variant) with a device and thus enable a direct connection to the outside, for example to any cloud solutions, control systems, etc.

  • Add Ons

    • [DeepL] sysWORXX CTR-100 Add On module Arduino
    • [DeepL] sysWORXX CTR-100 Add On module for mesh networks

    Add-ons are available for both mesh networks and IO controllers.

  • Features / Details

    Physical



    Size (LxW)

    70x24mm

    Operating temperature

    0ºC ... +70ºC

    Humidity

    10 - 95% non condensing (VDE 0110)

    CPU



    Controller / Core architecture

    STM32F767 / ARM 32-bit Cortex™-M7

    Clock frequency (internal)

    200MHz

    Memory



    RAM

    128kB for PLC application

    Connectivity



    ETH

    1x 10/100Mbps, on-board PHY + RJ45 connector

    CAN

    1

    UART

    3

    SPI

    1

    I2C

    1

    PWM

    2

    I/O interfaces



    Analog outputs

    2

    Analog inputs

    4

    Digital outputs

    max. 13

    Digital inputs

    max. 15

    Fast Counter

    1

    Board-to-board connectors

    DIL-40 socket or LGA

    Software



    Runtime system

    SmartPLC from infoteam

    Programming interface

    Ethernet

    Programmable

    IEC 61131-3

    Power supply



    Operating voltage

    3.3V +/-5%

    Optional



    LCD display

    via SPI or I2C

    SD card

    Variant DIL40: on-board socket



    Variant LGA: SD card signals led out for connection/integration of an external SD card slot on customized base board

    RTC




    sysWORXX CTR-100 DIL40 variant: no battery backup



    sysWORXX CTR-100 LGA variant: available

    Guidelines



    RoHS compliant

    yes

  • Documents & downloads

    NameTypeSizeAction
    S
    sysWORXX CTR-100 Utility Package sysWORXX CTR-100 Utility Package P/N 3912003 V1.02 includes driver software, system manual, baseboard schematic, IoT-Chip example zip14 MBDownload
    System Manual sysWORXX CTR-100 pdf1 MBDownload
    A
    Application Note sysWORXX CTR-100 pdf212 KBDownload
    B
    Brochure sysWORXX CTR-100 pdf2 MBDownload
  • Ordering information

    Art. No.

    Description

    3390100

    sysWORXX CTR-100 DIL40

    3390101

    sysWORXX CTR-100 LGA

    KIT-175

    Development Kit sysWORXX CTR-100 DIL40

    KIT-176

    sysWORXX meshnet Kit CTR-100 DIL40
