Develop. Validate. Scale.

Industry-ready platform for smart edge solutions

READY, SET, CODE: THE INDUSTRIAL PI FOR PROFESSIONALS!

The sysWORXX Pi-AM62x is a powerful single board computer (SBC) for industrial applications, designed as an evaluation platform for our sysWORXX ECUcore-AM62x (SoM). It provides the perfect environment for testing hardware and software concepts in industrial networks and is fully embedded in the sysWORXX technology platform.

The sysWORXX Pi-AM62x is part of our technology platform. Try it out now!

Industrial connectivity right on board

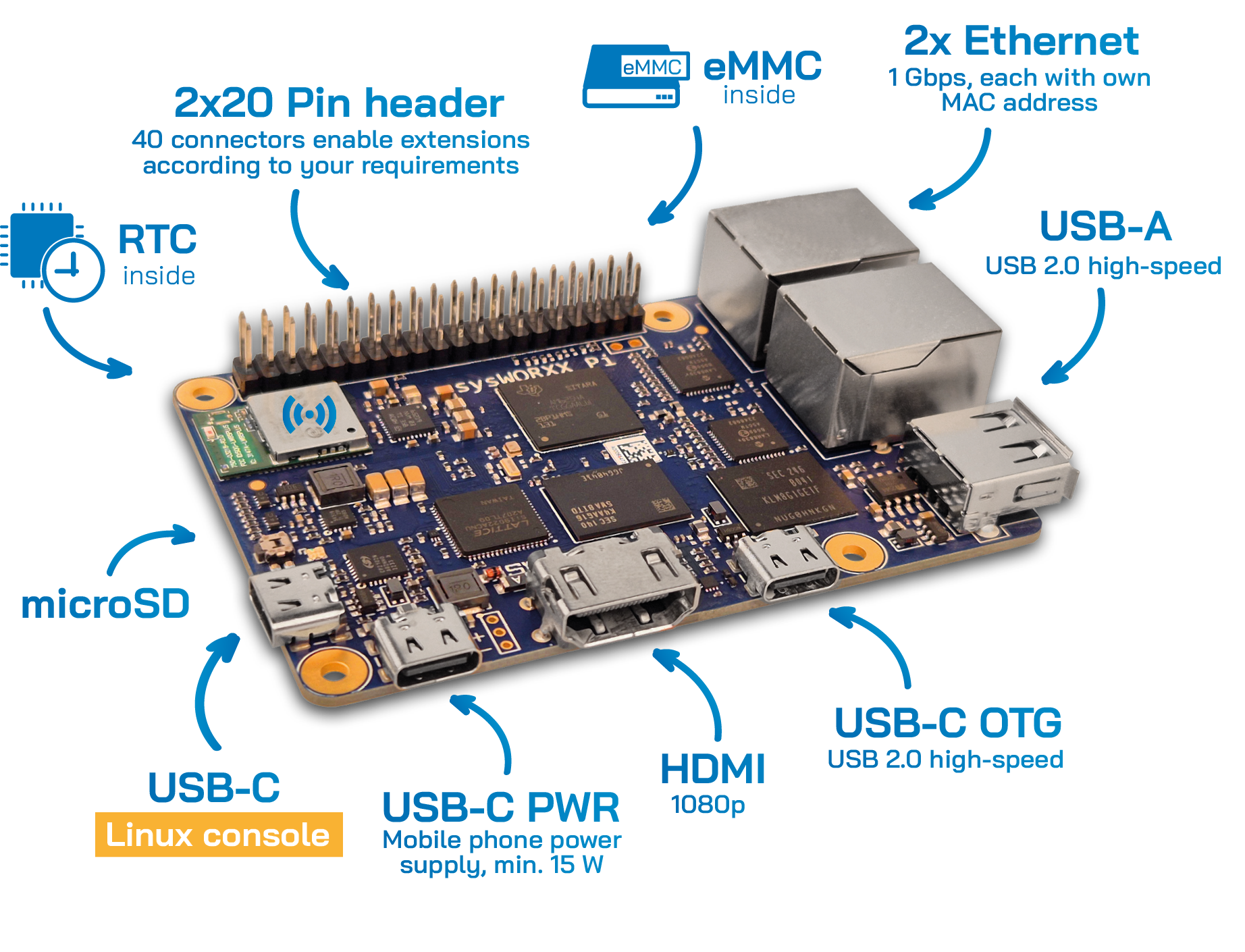

With its numerous directly usable interfaces - including HDMI, USB, GPIOs and two independent Ethernet ports - the board is immediately ready for use in demanding edge and IoT applications:

Dual Ethernet for maximum network flexibility:

Separation of IT and OT networks (e.g. MQTT, OPC UA, Modbus/TCP, EtherCAT)
Security architectures with gateway/firewall functionality
Network monitoring and intrusion detection in the production network
Real-time capable communication with industrial protocols (e.g. Profinet, EtherCAT)

Further highlights:

USB, SIO, CAN and configurable GPIOs for easy peripheral integration
Optional eMMC memory - robust & durable, ideal for industrial applications
On-board RTC - for precise time stamps and synchronous process control

Our sysWORXX Pi-AM62x is the powerful solution for your upstream software development.

From idea to marketable product - without system breakage

The sysWORXX Pi-AM62x enables fast and reliable validation of your system architecture - whether as a prototype, proof-of-concept or hardware-in-the-loop test platform.

Entry into embedded Linux and network technology
GPIO access for your own hardware developments
Compatible with software solutions from the CTR controller series

Standardized software basis - full scalability

The board runs on the Yocto-based Linux operating system from the sysWORXX technology platform - identical to the CTR series. For you, this means: a consistent software ecosystem in which applications can be scaled seamlessly from evaluation to series solution.

Supported software and development environments:

Freely programmable with C/C++, Rust, C#, Python
Node-RED incl. sysWORXX node for low-code access to I/Os
Support for CODESYS and OpenPCS
RAUC framework for secure over-the-air updates
Support for Docker for containerized applications

Features & Details...

n
Core
CPU	TI Sitara™ AM6254 Quad-Core Cortex™-A53 @ 1.4 GHz, optionally with 3D Graphics Processing Unit
Real-time Co-Pro	Cortex™-M4 @ 400 MHz
RAM	2 GiB DDR4
eMMC	8 GiB (optional)
RTC	on-board (optional external buffering by battery or gold cap)
Boot Mode	SD Card / eMMC

n
Connectivity
ETH	2 (1Gbps, each with its own MAC address)
USB Host	1 USB-A (USB 2.0 high-speed)
USB OTG	1 USB-C (USB 2.0 high-speed)
Display	1 HDMI (1080p)
WiFi	802.11 a/b/g/n/ac
Bluetooth	5.2
40-pin pin header	max. 1 SPI
	max. 2 I2C
	max. 1 UART
	max. 1 CAN-FD
	max. 28 GPIO
Linux console	serial (on-board as USB-C)

Documents & Downloads...

Downloads
Name	Type	Size	Action
A
Application Note (EN) - sysWORXX IO CODESYS	pdf	2 MB	Download
D
Data Sheet (EN) - sysWORXX Pi-AM62x	pdf	1 MB	Download
Data Sheet Addendum (EN) - sysWORXX AM62x device series	pdf	232 KB	Download
N
Node-RED I/O example (JSON)	zip	3 KB	Download
Node-RED InfluxDB-Demo (JSON)	zip	4 KB	Download
[
[DeepL] Quick Start Guide (EN) - sysWORXX Pi-AM62x	pdf	1 MB	Download

Images

Ordering information...

Bestellinformationen
Art. No.	Description
24011100	sysWORXX Pi-AM62x
24018100	Ready-to-Start-Kit
Scope of delivery Kit:	- 1x sysWORXX Pi-AM62x PCBA in box
	- 1x 32 GB µSD card with adapter -25/+85
	- 1x USB charger 30 W, 1x USB-A, 1x USB-C
	- 1x USB-C to USB-A 26 AWG, 30 AWG
	- 1x USB-C to USB-C 23 AWG, 30 AWG
	- 1x HDMI cable 2x plug-A -00/+000

Conclusion:

The sysWORXX Pi-AM62x - your flexible test and development platform for industrial use

Whether as an entry into the embedded world or as a scalable evaluation platform in an OEM context: The sysWORXX Pi-AM62x offers you robust industrial quality, maximum connectivity and full compatibility with your future target hardware - all on one board.
