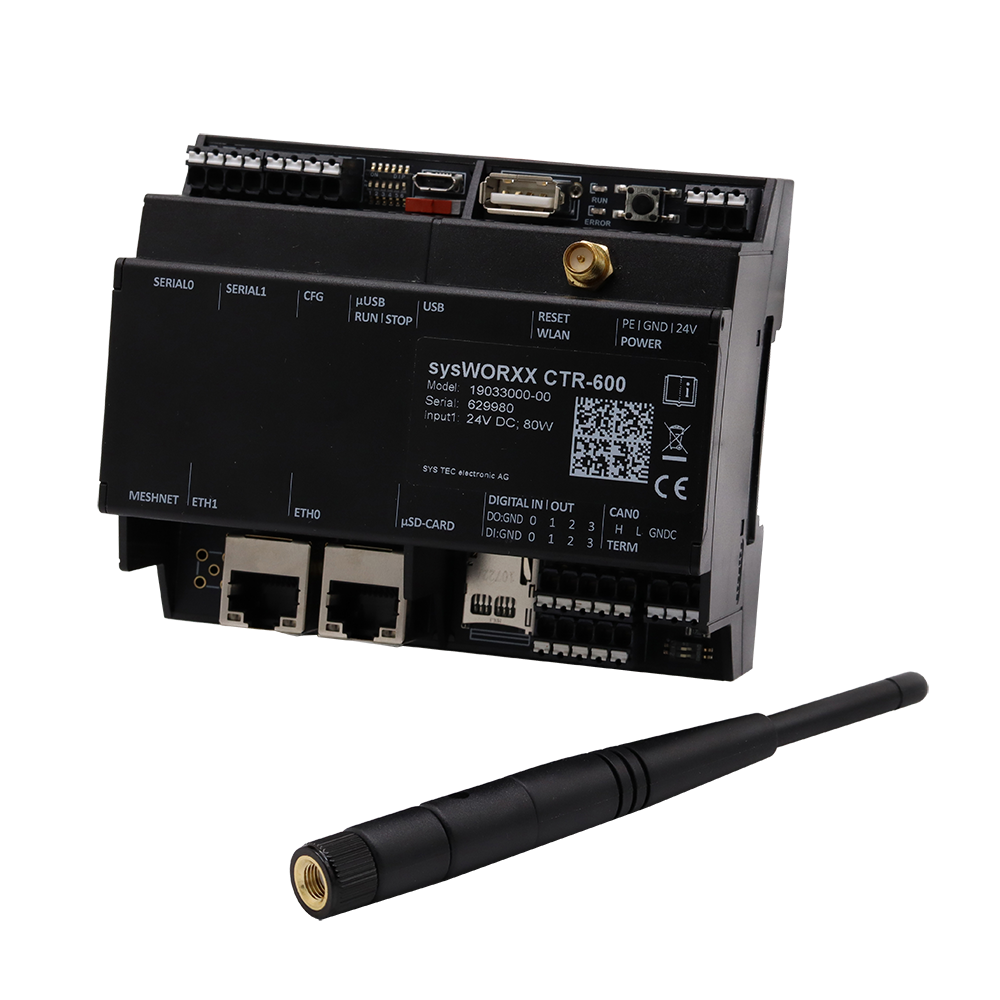

Small, compact and available with optional built-in Wi-Fi – that’s our sysWORXX CTR-600
The smart gateway solution
The sysWORXX CTR-600 is a freely programmable Linux module for industrial applications. It is used as a fieldbus gateway, edge controller and compact controller.
Fast, compact and powerful, just like its big brother, the CTR-800, it enables simple application development in no time at all using the low-code environment Node-RED. The CTR-600 can also be programmed as a PLC in accordance with IEC 61131-3 using the CODESYS programming environment.
Our CTR-600 offers two independent Ethernet interfaces for separate networks and, optionally, a Wi-Fi interface. It is also designed for minimal energy consumption – ideal for efficient industrial IoT applications.
Furthermore, the CTR-600 supports common high-level programming languages ranging from C/C++, through Rust, C# (.NET Core) and Java, to Python. Via standard protocols such as MQTT and REST, the CTR module is ready for use with all major cloud providers. We take the integration of IT and OT to a new level.
Scalable in terms of functionality and interfaces, the sysWORXX CTR-600 is a multi-talented device in a compact form factor. The controller can be used as an IoT coupler, for example as a translator between different protocols such as MQTT, Modbus and CANopen.
The sysWORXX CTR-600 is part of our technology platform. Try it out now!
At a glance – the benefits of the sysWORXX CTR-600
Versatile interfaces
- Two independent Ethernet interfaces for separate networks
- Optional Wi-Fi connectivity via an external antenna
- High field and wireless connectivity in a compact space
Freely programmable controller
- for automation and digitalisation, equipped with open-source software
- high-performance and ready for immediate use with all standard partner solutions
Deep Dive – sysWORXX CTR-600
Product details, software and manuals
-
Features & Details...
- On-board Wi-Fi (RP-SMA pigtail)
- Independent Ethernet interfaces for secure separation of enterprise IT and shop floor OT
- Support for various protocols:
- CAN, CANopen (including CANopen Manager Service for integrating other CANopen modules)
- Modbus RTU and TCP
- MQTT
- suitable for DIN rail mounting
Eigenschaften General
Dimensions (height, width, depth)
60x108x91mm
Temperature range
0°...55°C
Humidity
10...95 per cent, non-condensing (VDE 0110)
Protection rating
IP 20
Mounting type
Top-hat rail
Supply voltage
24 VDC
n Core-
-CPU
Dual 1.4 GHz Cortex-A53 (TI AM62x)
Real-time co-processor
400 MHz Cortex™-M4
RAM
1024 MiB
eMMC
8 GiB
RTC
on-board, with buffer capacitor
Temperature sensors
CPU and I/O board
n Connectivity
WLAN
1 (RP-SMA socket, external antenna)
ETH
2 (10/100/1000Base-T, each with its own MAC address)
CAN
1 (CAN 2.0B)
SIO
2 (configurable via software: RS-232, RS-485)
USB Host
1 (USB 2.0)
SD Card
1 (Micro-SD)
Linux Console
Serial (via USB)
n Software
Basic installation
Yocto Linux, I/O drivers, Node-RED including sysWORXX nodes for on-board I/Os
Additional licences
IEC 61131-3 runtime: CODESYS (including CAN, CANopen, Modbus TCP/RTU, MQTT)
Optional
qBee Agent for device management via the cloud
n I/O interfaces
Digital inputs
4 (24 V DC, galvanically isolated)
A/B encoder
1 (as an alternative function for DI2/DI3)
High-speed counter
1 (up/down, as an alternative function for DI2/DI3)
Digital outputs
4 (24 V DC/0.5 A)
PWM
2 (as an alternative function for DO2/DO3)
n User interfaces
Switch
Run/Stop switch, Reset button, DIP switches
Status LEDs
Power CPU, Power Periphery, Run, Error, Input and output status
Maintenance access
SSH/SFTP via Ethernet, Linux console via serial/USB
-
Software & Programming...
Programmability? No question about it!
Our CTR-600 also speaks the languages your staff use. As a controller, it is fully programmable and configurable to meet all requirements and supports modern high-level languages as well as the execution of IEC 61131-3 PLC programmes and Linux-based applications. As a core component for your development work, there are virtually no limits to your ideas.
- C/C++, C# (.NET Core), Java, Python, Rust
- Node-RED runtime with sysWORXX-specific nodes
- CODESYS integration IEC 61131-3
- Docker (container virtualisation)
-
Personalisation...
Our modules and controllers can be flexibly adapted to your needs:
- White-label & branded
- Customised configuration and design options
Whether you need to accommodate a different form factor, temperature range or specific environmental conditions – we have the core technology for your solution!
-
Documents & Downloads...
- Application Note for Docker - sysWORXX CTR-6xx and CTR-8xx (1 MB)
- Application Note (EN) - sysWORXX IO CODESYS (2 MB)
- CAD file - sysWORXX CTR-600 (3 MB)
- System Manual (EN) - sysWORXX CTR-6xx and CTR-8xx (2 MB)
- Technical Specification (EN) - sysWORXX CTR-600 (472 KB)
- Quick Start Guide (EN) - sysWORXX CTR-6xx and CTR-8xx (1 MB)
-
Our partner solutions...
qBee Device Management
Accelerate the roll-out of your solution with out-of-the-box connectivity from our partner qBee. With qBee Device Management, you can efficiently manage and secure your IoT devices. The agents, tailored to our sysWORXX CTR-600, offer you:
- Remote access via shell and web
- Monitoring and alerting, port forwarding
- Configuration management
- Receive device metrics and CVE security analyses
Models in the sysWORXX CTR range
Within the sysWORXX CTR family, you will find suitable models for a range of automation and gateway applications. This allows you to tailor the platform specifically to your requirements.
-
![sysWORXX CTR-800]()
High-performance compact controller for networked applications
-
![sysWORXX CTR-810]()
Expandable control solution for industrial systems
-
![sysWORXX CTR-850 mit Zubehör]()
A flexible platform for bespoke automation tasks
