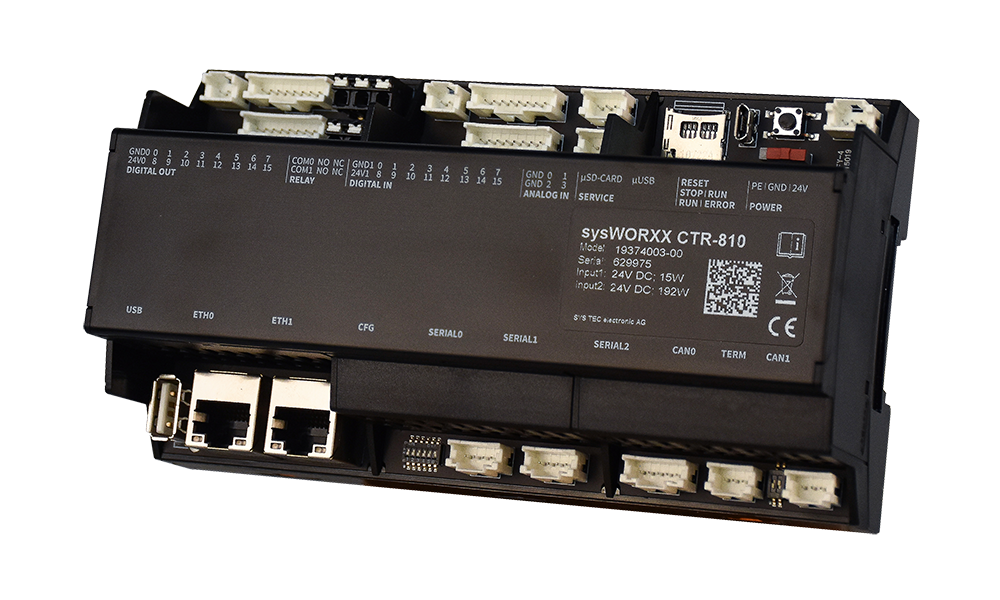

A controller for efficient pre-assembly – that’s our sysWORXX CTR-810
Quick installation and replacement in the field without any wiring errors
Make it child’s play for your technicians and operators to replace field devices with our sysWORXX CTR-810.
This alternative version of our Linux-based compact controller is fully compatible with the sysWORXX CTR-800 and also features Molex Micro Clasp connectors for quick-release connection of all local inputs and outputs, as well as communication interfaces via mating connectors. The detachable connectors enable efficient pre-assembly of the connection cables (cable harness).
Our CTR-810 offers two independent Ethernet interfaces for separate networks. It is also designed for minimal energy consumption – ideal for efficient industrial IoT applications.
As a freely programmable compact Linux controller for automation and digitalisation, it offers you the simplest possible application development in all common high-level programming languages such as C/C++, Rust, C# (.NET Core), Java and Python. The CTR-810 can also be programmed as a PLC in accordance with IEC 61131-3 using the CODESYS programming environment. For an easy start, even for non-IT specialists, the low-code environment Node-RED is ready to use straight away. Thanks to standard protocols such as MQTT and REST, the CTR module is ready for use with all common cloud providers.
This module is particularly suitable for use with pre-assembled cable harnesses and for installation by untrained personnel. This enables you to carry out a complete replacement of your devices on site in the shortest possible time.
The sysWORXX CTR-810 is part of our technology platform. Try it out now!
-
Features & Details...
- Molex Micro Clasp connectors, 2 mm pitch
- Independent Ethernet interfaces for secure separation of enterprise IT and shop floor OT
- Support for various protocols:
- CAN, CANopen (including CANopen Manager service for integrating other CANopen modules)
- Modbus RTU and TCP
- MQTT
- Shielded backplane expansion bus
- Suitable for DIN top-hat rail mounting
- Wi-Fi connection via an external antenna
Eigenschaften General
Dimensions (height, width, depth)
60x162x91mm
Temperature range
0°...55°C
Humidity
10...95% non-condensing (VDE 0110)
Protection class
IP 20
Mounting type
Top-hat rail
Supply voltage
24 VDC
n Core-
-CPU
Dual 1.4 GHz Cortex-A53 (TI AM62x)
Real-time co-processor
400 MHz Cortex™-M4
RAM
1024 MiB
eMMC
8 GiB
RTC
on-board, with buffer capacitor
Temperature sensors
CPU and I/O board
n Connectivity
ETH
2 (10/100/1000Base-T, each with its own MAC address)
CAN
2 (CAN 2.0B)
SIO
3 (configurable via software: RS-232, RS-485)
USB Host
1 (USB 2.0)
SD Card
1 (Micro-SD)
Linux Console
Serial (via USB)
n Software
Basic installation
Yocto Linux, I/O drivers, Node-RED including sysWORXX nodes for on-board I/Os
Additional licences
IEC 61131-3 runtime: CODESYS (including CAN, CANopen, Modbus TCP/RTU, MQTT)
Optional
qBee Agent for device management via the cloud
n I/O interfaces
Digital inputs
16 (24 V DC, electrically isolated)
A/B encoder
1 (as an alternative function for DI14/DI15)
High-speed counter
1 (up/down, as an alternative function for DI14/DI15)
Digital outputs
16 (24 V DC/0.5 A, galvanically isolated)
PWM
2 (as an alternative function for DO14/DO15)
Relays
2 (230 V AC/1 A, change-over)
Analogue inputs
4 (12-bit, software-configurable: 0–10 V DC, 0–20 mA)
n User interfaces
Switch
Run/Stop switch, Reset button, DIP switches
Status LEDs
Power CPU, Power Periphery, Run, Error, Input and output status
Maintenance access
SSH/SFTP via Ethernet, Linux console via serial/USB
-
Software & Programming...
Programmability? No question about it!
Our CTR-810 also speaks the languages your staff use. As a controller, it is freely programmable and configurable to meet all requirements and supports modern high-level languages as well as the execution of IEC 61131-3 PLC programmes and Linux-based applications. As a core component for your development work, there are virtually no limits to your ideas.
- C/C++, C# (.NET Core), Java, Python, Rust
- Node-RED runtime with sysWORXX-specific nodes
- CODESYS integration with IEC 61131-3
- Docker (container virtualisation)
-
Personalisation...
Our modules and controllers can be flexibly adapted to your needs:
- White-label & branded
- Customised configuration and design options
Whether you need to accommodate a different form factor, temperature range or specific environmental conditions – we have the core technology for your solution!
-
Documents & Downloads...
- Application Note for Docker - sysWORXX CTR-6xx and CTR-8xx (1 MB)
- Application Note (EN) - sysWORXX IO CODESYS (2 MB)
- Quick Start Guide (EN) - sysWORXX CTR-6xx and CTR-8xx (1 MB)
- STEP 3D CAD file - sysWORXX CTR-810 (29 MB)
- System Manual (EN) - sysWORXX CTR-6xx and CTR-8xx (2 MB)
- Technical Specifications (EN) - sysWORXX CTR-800 (640 KB)
Leaflets and further information
You can find further information on the sysWORXX CTR range in our product leaflets. These provide a quick overview of the models, applications and technical specifications.
