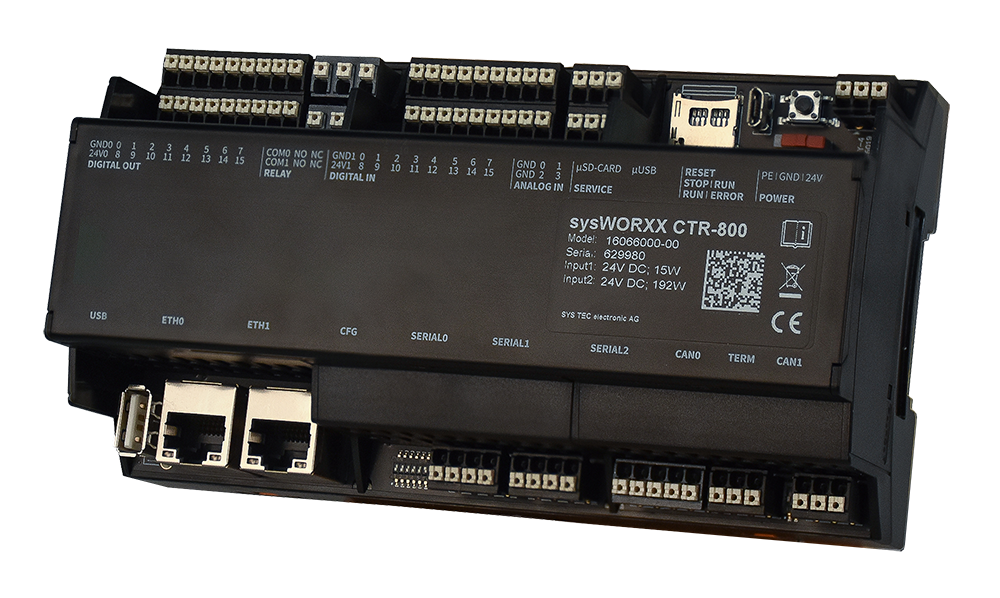

A compact control system for all requirements –that’s our sysWORXX CTR-800

Making machine data readable

With the sysWORXX CTR-800, we offer you a flexible control solution that is ideally suited as a starting point for your own developments.

Our CTR-800 features two independent Ethernet interfaces for separate networks. It is also designed for minimal energy consumption – ideal for efficient industrial IoT applications.

As a freely programmable compact Linux controller for automation and digitalisation, it enables you to create a wide range of applications in all common high-level programming languages such as C/C++, Rust, C# (.NET Core), Java and Python.

The CTR-800 can also be programmed as a PLC in accordance with IEC 61131-3 using the CODESYS programming environment. For an easy start, even for non-IT specialists, the low-code environment Node-RED is ready to use straight away. Thanks to standard protocols such as MQTT and REST, the CTR module is ready for use with all common cloud providers.

On the hardware side, the CTR-800 features a comprehensive range of communication interfaces as well as versatile digital and analogue inputs and outputs. With our sysWORXX CTR-800, you can test and expand your IoT concept without major upfront investment, thanks to fast and flexible integration.

Our highlight: The sysWORXX CTR-800 can be customised exclusively to your requirements, both visually (white label) and technically.

The sysWORXX CTR-800 is part of our technology platform. Try it out now!

At a glance – the benefits of the sysWORXX CTR-800

Versatile interfaces

Two independent Ethernet interfaces for separate networks
Optional Wi-Fi connectivity via a USB stick

Freely programmable controller

Support for modern high-level languages as well as the execution of IEC 61131-3 PLC programmes and Linux-based applications
Suitable for DIN top-hat rail mounting

Customisable scalability in series production

Assembly and design options
White label and private label
Modularly expandable via a shielded backplane expansion bus

Extensive software ecosystem

C/C++, Rust, Java, C# (.NET Core), Python
Node-RED low-code platform
CODESYS as a PLC in accordance with IEC 61131-3

Deep Dive – sysWORXX CTR-800

Product details, software and manuals

Features & Details...

Eigenschaften
General
Dimensions (height, width, depth)	60x162x91mm
Temperature range	0°...55°C
Humidity	10...95 per cent, non-condensing (VDE 0110)
Protection rating	IP 20
Mounting type	Top-hat rail
Supply voltage	24 VDC

n
Core-
-CPU	Dual 1.4 GHz Cortex-A53 (TI AM62x)
Real-time co-processor	400 MHz Cortex™-M4
RAM	1024 MiB
eMMC	8 GiB
RTC	on-board, with buffer capacitor
Temperature sensors	CPU and I/O board

n
Connectivity
ETH	2 (10/100/1000Base-T, each with its own MAC address)
CAN	2 (CAN 2.0B)
SIO	3 (configurable via software: RS-232, RS-485)
USB Host	1 (USB 2.0)
SD Card	1 (Micro-SD)
Linux Console	Serial (via USB)

n
Software
Basic installation	Yocto Linux, I/O drivers, Node-RED including sysWORXX nodes for on-board I/Os
Additional licences	IEC 61131-3 runtime: CODESYS (including CAN, CANopen, Modbus TCP/RTU, MQTT)
Optional	qBee Agent for device management via the cloud

n
I/O interfaces
Digital inputs	16 (24 V DC, electrically isolated)
A/B encoder	1 (as an alternative function for DI14/DI15)
High-speed counter	1 (up/down, as an alternative function for DI14/DI15)
Digital outputs	16 (24 V DC/0.5 A, galvanically isolated)
PWM	2 (as an alternative function for DO14/DO15)
Relays	2 (230 V AC/1 A, change-over)
Analogue inputs	4 (12-bit, software-configurable: 0–10 V DC, 0–20 mA)

n
User interfaces
Switch	Run/Stop switch, Reset button, DIP switches
Status LEDs	Power CPU, Power Periphery, Run, Error, Input and output status
Maintenance access	SSH/SFTP via Ethernet, Linux console via serial/USB

Software & Programming...
What makes the sysWORXX CTR-800 special is its software. As well as IEC 61131-3, it can be programmed in many other languages, which means there is no need for costly external programming services. The controller speaks the language of your staff.

As a freely programmable compact Linux controller for automation or digitalisation, it offers you a range of versatile programming systems for the independent development of your solution.
- C/C++, C# (.NET Core), Java, Python, Rust
- Node-RED runtime with sysWORXX-specific nodes
- CODESYS integration IEC 61131-3
- Docker (container virtualisation)
Documents & Downloads...
Images
- Go to the image downloads

Order information...

Bestellinformationen
Item No.	Description
16066000	sysWORXX CTR-800
162208	USB cable, 0.8 m, USB-A to USB 2.0 Micro-B plug
149018	Power supply & connection cable for laboratory or test applications

Models in the sysWORXX CTR range

Within the sysWORXX CTR family, you will find suitable models for a range of automation and gateway applications. This allows you to tailor the platform specifically to your requirements.

sysWORXX CTR-600

Smart gateway solution for industrial connectivity and automation
sysWORXX CTR-810

Expandable control solution for industrial systems
sysWORXX CTR-850

A flexible platform for bespoke automation tasks

Leaflets and further information

You can find further information on the sysWORXX CTR range in our product leaflets. These provide a quick overview of the models, applications and technical specifications.
