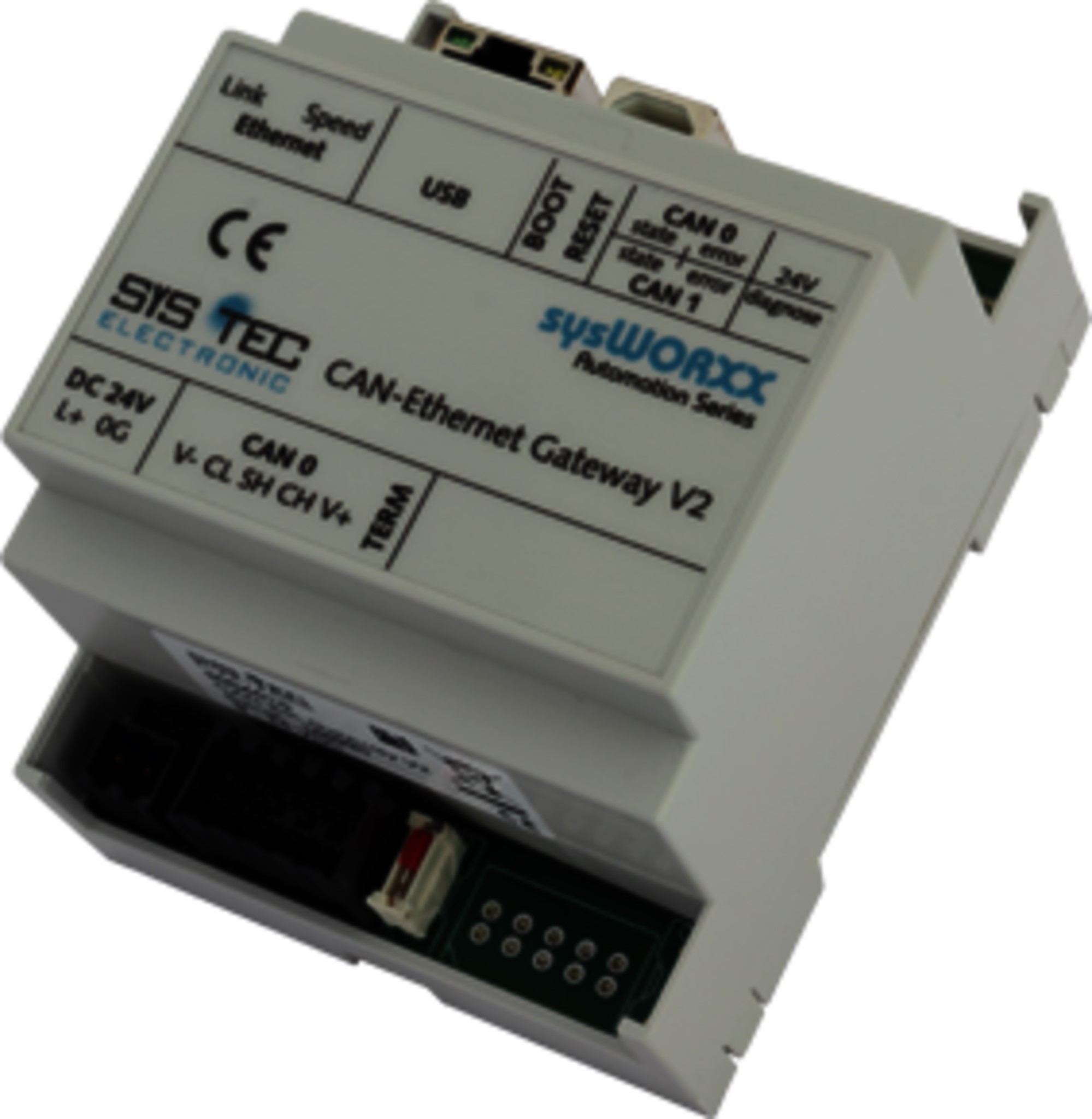

sysWORXX CAN-Ethernet Gateway V2

Integration of CAN buses into existing Ethernet technology

Use as universal PC CAN interface as well as for coupling CAN networks via Ethernet

[DeepL] sysWORXX CAN-Ethernet Gateway

The CAN Ethernet Gateway enables the integration of CAN buses into an existing Ethernet topology. It is thus suitable both as a universal PC CAN interface and for coupling CAN networks via Ethernet. CAN messages are transmitted directly on layer 2 level - and thus protocol-independent . This allows the CAN Ethernet Gateway to be used for various high layer protocols, such as CANopen, DeviceNet or SDS. Access via Ethernet is possible via TCP as well as UDP.

The CAN Ethernet Gateway is based on a powerful ARM9 controller, which ensures a high data throughput even with several CAN interfaces active at the same time. By using Linux as operating system, the user can run own programs in parallel to the gateway application. Sophisticated filter and trigger mechanisms allow user tasks to be called directly on the gateway as a targeted response to specific events.

Easily configurable filters ensure a reasonable restriction of the CAN messages to be transmitted. A time stamp is assigned to each CAN message, which ensures temporal transparency during message transmission. The CAN Ethernet Gateway can manage several Ethernet connections simultaneously , thus enabling the creation of complex network structures.

The device can be configured either via Ethernet or via USB.

  • Features & Details

    Physical



    Size (LxWxH)

    70 x 100 x 61 cm

    Operating Temperature

    0 to +70ºC

    Humidity

    10 to 95% non-condensing (VDE 0110)

    Operation Modes



    Gateway mode

    The gateway mode allows the device to be used as a universal CAN/Ethernet coupler

    Bridge mode

    The Bridge mode allows the transparent coupling of CAN networks via LAN or Internet.

    Connectivity



    Ethernet interface

    10/100 Mbit/s Ethernet (10Base-T/100Base-T)

    Connector

    RJ45

    CAN Controller

    SJA1000

    CAN interface

    up to 2 CAN interfaces, high-speed CAN according to ISO 11898 1/2, optically isolated

    CAN specification

    2.0A (11-bit identifier)



    2.0B (29-bit identifier)

    CAN bus connector

    2x 5-pin removable screw terminal connectors, optionally with D-SUB-9 adapter cable

    CAN bus transmission rate

    10kbps to 1Mbps

    CAN bus features

    Remote frames, Listen only mode, error message with configurable identifier



    Time stamp for received messages

    Software



    PC application programming

    via Windows with programming API (DLL) standard programming language (e.g. C/C++)

    Power supply



    Power supply

    24VDC +20% -60%

    Power consumption

    typ. 100mA

    Connection power supply

    2pin screw terminal connector

    Housing



    protection class

    IP20 plastic housing for DIN/EN top-hat rails

    Other



    Gateway configuration

    via Telnet, FTP or serial interface via USB port

    Gateway software

    preprogrammed Linux, device firmware

  • Function types

    Gateway mode

    The gateway mode allows the use of the device as a universal CAN/Ethernet coupler. Typically, the gateway is used as an external CAN interface on a PC and thus enables simple and flexible access to CAN systems via a LAN or via the Internet. The drivers included in the scope of delivery enable the CAN-Ethernet gateway to be used as a PC interface for all CAN and CANopen software tools distributed by SYSTEC. The detailed documented driver API also supports the integration of the gateway into own user applications. Messages are exchanged with the CAN network from the host application via socket-based TCP or UDP communication.

    Bridge mode

    The bridge mode allows the transparent coupling of CAN networks via LAN or Internet. By filtering messages, the data volume to be transmitted can be limited on the one hand, and on the other hand the data exchange between the subnets can be specifically influenced. For example, when coupling CANopen networks, it is possible to exchange only PDOs and to exclude all other message types from forwarding.

  • Documents & downloads

    NameTypeSizeAction
    C
    CAN-Ethernet Gateway - Product Data Sheet pdf848 KBDownload
    CAN-Ethernet Gateway V2 - ASCII parser example zip2 MBDownload
    CANopen API for .NET - Software Documentation pdf273 KBDownload
    CAN-Ethernet Gateway V2 - System Manual pdf1 MBDownload
    CAN-Ethernet Gateway V2 - USB interface driver for Windows Driver for Windows® 10, 8.1, 8, 7 (32/64 bit)zip7 KBDownload
    CAN-Ethernet Gateway - Windows Driver Package P/N SO-1027 Driver for WinXP / Vista / Windows 7 including programmer API DLL - Release V3.3.1.0 zip30 MBDownload
    CANopen API for .NET P/N SO-1088 - V5.70zip31 MBDownload
  • Ordering information

    Bestellinformation

    Part No.

    Description

    3004010

    CAN-Ethernet Gateway V2



    with one CAN-bus interface

    3004011

    CAN-Ethernet Gateway V2



    with two CAN-bus interfaces
