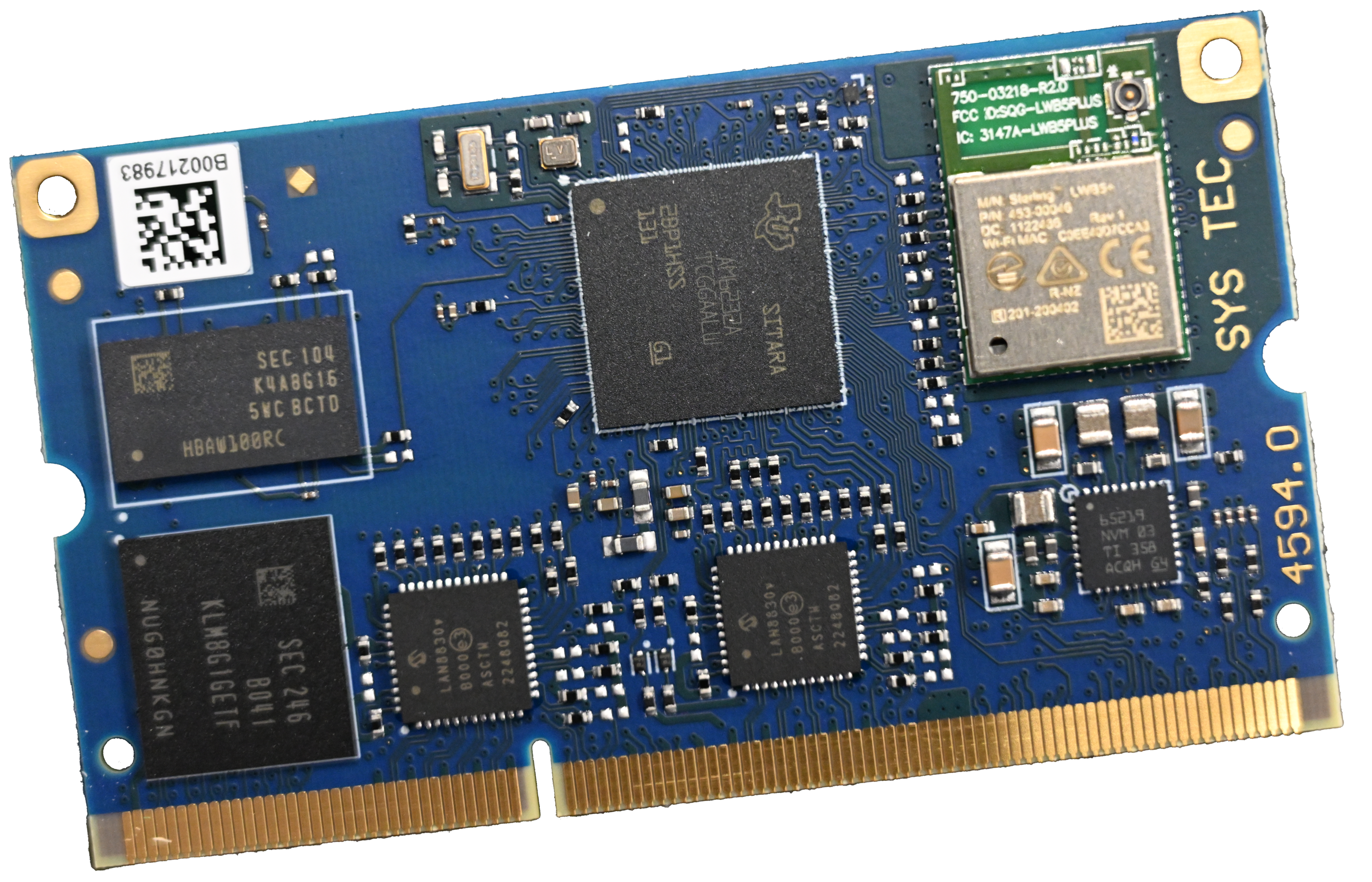

sysWORXX ECUcore-AM62x – Scalable System-on-Module for IoT, edge controllers, IPCs, PLCs, HMIs and gateways We take the performance of your embedded systems to a whole new level.
Our sysWORXX ECUcore-AM62x is a tried-and-tested, state-of-the-art technology platform. Using this module as a basis, we can tailor it to your specific requirements and application in a cost-effective manner. Our solution offers you key advantages in terms of both time-to-market and design-to-cost. The sysWORXX ECUcore-AM62x forms part of our technology platform.
Have you heard of our sysWORXX Pi-AM62x yet?
It offers you the opportunity to test the interaction between hardware and software and to validate the planned system concept in advance. About the sysWORXX Pi-AM62x
The benefits of the sysWORXX ECUcore-AM62x
Typical applications of the sysWORXX ECUcore-AM62x
The platform is suitable for high-performance embedded and industrial applications with demanding requirements in terms of connectivity, scalability and software flexibility.
- IoT
- Edge Controller
- IPC
- PLC
- HMI
- Gateway
A suitable model for the quantity and stage of development
-
Features & Details...
n Core-
-CPU
TI Sitara™ AM623 up to quad-core Cortex™-A53 @ 1.4 GHz, optionally with 3D Graphics Processing Unit
Real-time Co-Processor
Cortex™-M4F @ 400 MHz
RAM
1 GiB DDR4 (max. 2 GiB)
eMMC
8 GiB
RTC
on-board
Boot Mode
SD Card / eMMC
n Connectivity
, ETH
2 (1 Gbps, each with its own MAC address)
Wi-Fi
802.11 a/b/g/n/ac
Bluetooth
5.2
CAN
2 (CAN-FD)
SIO
4 (2 of which with RTS/CTS hardware handshake)
USB
1 host (USB 2.0 high-speed),
1 device (USB 2.0 high-speed)
Display
1 OLDI (Open LVDS Display Interface)
SD card
1
SoM connector on base board
204-pin DIMM socket
n I/O interfaces
SPI
2
I2C
1
GPIO
41
A/B encoder / high-speed counter
1
PWM
2
analogue inputs
4 (12-bit, optional 16-bit)
-
Software & Programming...
- Ready-to-use: A software development platform tailored to your requirements
- Yocto BSP or Debian/GNU Linux
- Docker-based build environment
- Base project in the form of a Git repository
- Specific device tree for your solution
- Secure OTA updates based on RAUC (Yocto)
- Support with setting up Secure Boot
- and much more
- Use the programming language and environment of your choice
- Programmable in C/C++, Rust, Python and many more
- Node-RED
- IEC 61131-3
- Consulting and workshops:
- Design of your product-specific Linux distribution
- Working with the relevant build environment
- Development and integration of your application
We support you every step of the way throughout your development!
Leaflets and further information
Further information on the sysWORXX ECUcore-AM62x can be found in our product leaflet. This will give you a quick overview of its applications and technical features.
