sysWORXX CTR-700: Control & Monitoring for Industry 4.0 Wednesday, 8. March 2017 | Topics

Our sysWORXX CTR-700 speaks the language of your staff

Our new sysWORXX CTR-700 ensures a secure connection between the automation and IT levels. The inputs and outputs of this all-rounder support standard industrial signals such as digital I/Os (24 VDC, 250 VAC) and analogue I/Os (0 …10 VDC, 4 …20 mA). It is also suitable for mounting on DIN top-hat rails.

The sysWORXX CTR-700 is developed by SYS TEC electronic in Germany and is designed for long-term availability for industrial applications in Europe.

Below, we provide you with some initial brief information on the new sysWORXX CTR-700. Detailed information is available for download in the PDF file opposite.

Application scenarios

• Acquisition, consolidation and analysis of a wide range of data points from the system under monitoring
• Condition monitoring ( continuous condition monitoring)
• Energy management (Smart Building, Smart Industry)
• Predictive maintenance
• Integration into Meshnet networks
• Narrowband functionality (from 2018)

Technical Specifications

• NXP/Freescale i.MX7 – i.MX7 1GHz
• 200 MHz ARM Cortex™-M4
• 1024 MB RAM, 8 GB eMMC
• M2M communication via OPC UA
• Data transmission to the cloud via MQTT
• CAN / CANopen, Modbus (TCP & RS485), RS232
• C / C++, C#, Java, Python and IEC 61131-3 programmable user application
• Node-RED programming and visualisation
• Virtualisation using Docker

Software

Programming languages

IoT languages

• C#/.NET
• Node-RED
• Java
• Python

Other languages/communication interfaces/protocols

• MQTT
• OPC UA
• OpenPCS
• C/C++
• SD
• CANopen
• Modbus
• TCP/IP

Special features

• Support for modern high-level languages:
  Simultaneous execution of IEC 61131-3 PLC programmes and other Linux applications.
• Two independent Ethernet interfaces for secure separation of enterprise IT and shop floor OT
• Use of higher-level protocols such as CANopen (including the CANopen Manager service for integrating other CANopen modules)
• Support for communication and data exchange with other devices via the Modbus protocol using extended Modbus/TCP function blocks
• Shielded backplane expansion bus
• Suitable for DIN top-hat rail mounting

Services available from SYS TEC electronic

• Import of GPIOs, communication protocols or interfaces into various programming languages or runtime systems

Product status

• Samples available from November 2017 (product launch at SPS IPC Drivers 2017)
• Series production planned for Q1 2018

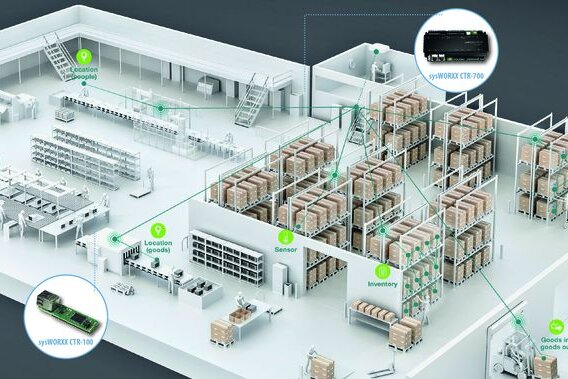

Mesh networks with Wirepas

• Wirepas Connectivity offers a connectivity solution optimised for performance, bandwidth, range and latency. Our technology is hardware-independent – our protocol runs on any wireless chip. Our solution enables customers to run the network on batteries for up to 15 years. To achieve this, all network parameters – such as bandwidth and latency – must, of course, be monitored and controlled, but that is precisely what Wirepas does. We make compromises to ensure the solution meets our customers’ needs – no more, no less.
